       Page 1
Product Usage Veh/Other Manufacture Circuit and Connection Diagram

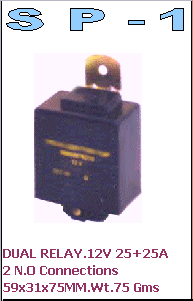

SP-1 Dual Relay 12V 25+25A 2 N.O. Connections-Mitsubishi

Air-Conditioner,
Interlock, Door Lock, Dual Search Lights, Dual Horn, Dual Speed Fan, Dual Speed Wiper, Head Lamp High/ Low Beam, Halogen Lamp etc.

All European, Japanese & Indian vehicles

Mitsubishi

Click here for Connection Diagram

Click here for Circuit Diagram

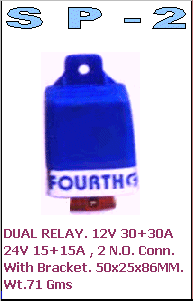

SP-2 Dual Relay 12V 30+30A 24V 15+15A, 2 N.O. Connections with Bracket for all European, Indian, Japanese vehicles - Toyota, Suzuki, Iveco, Tata, Mazda

Air-Conditioner,
Interlock, Door Lock, Dual Search Lights, Dual Horn, Dual Speed Fan, Dual Speed Wiper, Head Lamp High/ Low Beam, Halogen Lamp etc.

UniversalApplication

Universal for all European,  Japanese and Indian vehicles

Iveco, Tata, Toyota
Mazda, Suzuki etc.

Click here for Connection Diagram

Click here for Circuit Diagram
SP-3 Dual Relay 12V 30+30A 24V 15+15A 2 N.O.Connections with Bracket for all European, Indian, Japanese vehicles  Air-Conditioner,
Interlock, Door Lock, Dual Search Lights, Dual Horn, Dual speed Fan Head Lamp High/ Low Beam, Halogen Lamp etc.
Universal Application

All European,  Japanese and Indian vehicles



Click here for Connection Diagram

Click here for Circuit Diagram
SP-4 Dual Horn Control Relay 12V 30+30A & 24V 15+15A Two Horns Connection with Bracket

For control of Two Horns to select sounding of One Horn or Two Horns or Oscillation of Two Horns to make a Melody
Universal Application

All Vehicles or locomotives of any make with two electric or electrically operated pneumatic horns.

Click here for Connection Diagram

Click here for Circuit Diagram

Previous Page

Next Page

Return to Product Gallery 1

SP1 to SP4   SP5 to SP8   SP9 to SP12   SP13 to SP16   SP17 to SP20
